Location:
- Grid reference: ST14517940
- x=314510
- y=179400
- 51°30'25"N; 3°13'54"W
- Civil Parish:Llandaff, Glamorgan
Clinker manufacture operational: 1894-1899

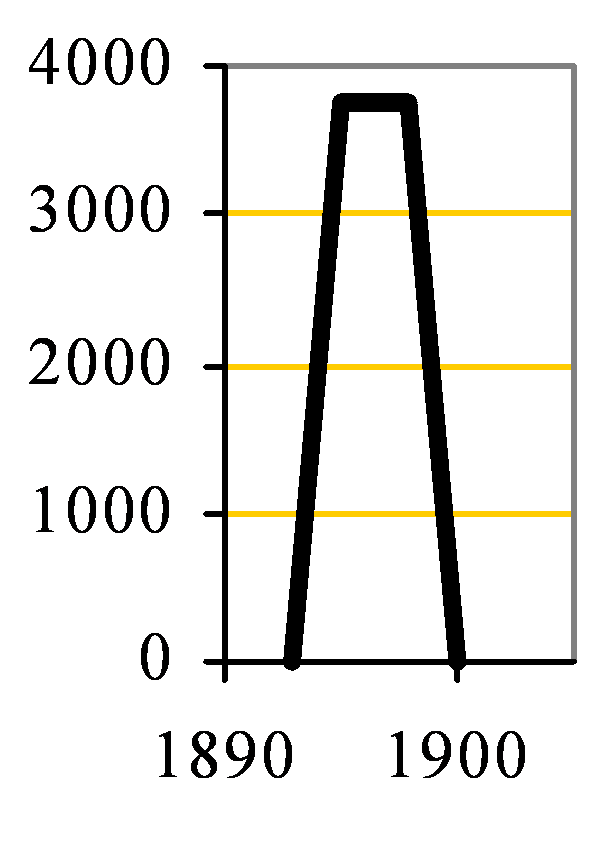

Approximate total clinker production: 12,000 tonnes
Raw materials: ? The site is in the valley bottom and there are no obvious raw materials in the immediate vicinity. Argillaceous Carboniferous Limestone from Garth Mountain might have been used, and there was Blue Lias to the west of Llandaff.
Ownership:
- 1894-4/1896 T M Pickford
- 7/1896-11/1899 Cardiff and Newport Portland Cement Co.
A brickworks previously occupied the site. This was converted to make cement by a "new process" in 1894. What the process was remains a mystery. It may have involved slag, but coke was used, so a clinker was probably made. The company was wound up in 1899. The map shows it as a cement and lime works with six kilns, of which perhaps three (if any) made clinker. Output 75 t/week. The plant was on the Glamorgan Canal, and the Llandaff station on the Taff Vale railway was 0.7 km away. The plant was disused by 1901. The site is now under a car park – nothing remains.
Power supply
No information
Rawmills
No information
No rotary kilns were installed.
Sources:
