Location:
- Grid reference: TQ62357468
- x=562350
- y=174680
- 51°26'52"N; 0°20'11"E
- Civil Parish: Northfleet, Kent
Clinker manufacture operational: 1876-1902
Approximate total clinker production: 250,000 tonnes
Raw materials:
- Upper Chalk (Seaford Chalk Formation: 85-88 Ma) from quarry at 562300,174500
- Thames and Medway Alluvial Clay
Ownership:
- 1879-1900 Lawrence and Wimble
- 1900-1902 APCM (Blue Circle)

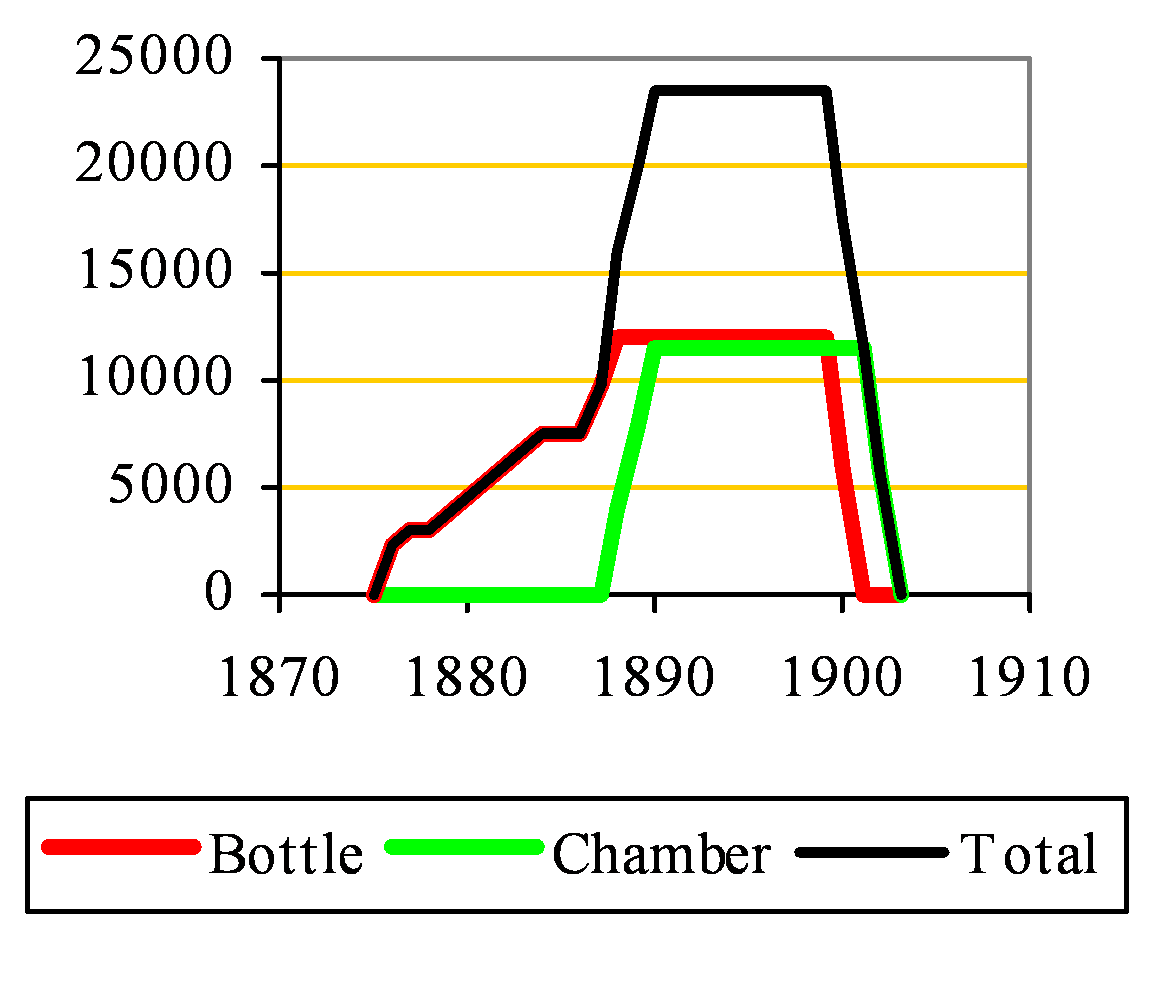

Also called Lawrence & Wimble’s. The plant started with two bottle kilns, expanded to five around 1883 and to eight around 1887. In 1888, six chamber kilns were installed, and a further three around 1891. The bottle kilns were out of use by 1900. Output around 230 t/week. There was no rail link, all product being shipped by barge. The site much later was redeveloped as part of Northfleet plant: the slurry storage tanks largely covered the site.
Power supply
No information
Rawmills
No information
No rotary kilns were installed. There is little detailed contemporary information available regarding this plant. Please contact me with any relevant information or corrections. I am particularly interested in firmer dates and statistics, pictures and plans.
Sources::
- Primary Sources:
- Greenhithe Archive
- Ordnance Survey 1:2500 mapping
- BGS mapping and monographs
- Confirmatory Sources:
