Lesley Cook in 1958 wrote an account of the early history of Blue Circle that has become the standard narrative, recycled by many other writers. Underlying the account is the rapid evolution of industry production capacity in the first two decades of the 20th century, during which two concerted attempts to achieve a monopoly failed, overtaken by the more rapid expansion of competitors. The atmosphere of failure that hung over Blue Circle was not lifted until the Board coup d'état in the mid-1920s swept away the industry's "old guard".

Cook's account of the period drew heavily upon Henry Osborne O'Hagan's personal reminiscences, and on the more objective account by Macrosty. The capacity data in the account were very limited, being essentially restricted to the list compiled in Davis's second book (still in copyright), which was not yet published when Macrosty wrote his account. Other data consist of a few anecdotal snippets. Much of the argument hinges upon the interpretation of these data.

Quantitative data begin with the 1900 APCM Prospectus (Note 1). This said:

  • It is believed that upward of 80 per cent. of the entire output of Portland Cement in the United Kingdom is produced on the Thames and Medway.
  • The total production of cement on those rivers in 1899 has been estimated at 1,700,000 tons, whereas the estimate of production in 1895 was only 1,350,000 tons.
  • The certified production of the firms taken over by this Association was: 1897 1,222,240 tons; 1898 1,337,268 tons: 1899 1,404,569 tons.
  • Owing to improvements and additions the capacity of the combined works is now about 1,570,000 tons.
  • The undertakings which the Association acquires, and others with whom they will have working arrangements (Note 2), are estimated to produce about 89 per cent of the total capacity of production of Cement on the Thames and Medway.

It must be noted that, apart from the "certified" production data, the figures are all estimates of unspecified precision.

Of the firms listed in the prospectus, three dropped out immediately after the launch (Note 3). Macrosty said "they represented a production of 140,000 tons on the Thames and Medway, and 50,000 tons on the Tyne".

In 1907, there was the national "Census of Production", which gave cement output as 2,886,000 tons (Note 4). In 1909, the second edition of A. C. Davis's Portland Cement was published. It included an appendix in which the cement manufacturers were listed, with their "approximated weekly tonnage outputs in 1907". The total of the listed data was 67,070 tons - or 3,353,500 tons for a 50-week year. The census production was only 86% of this, and it is clear that these "output" data were actually capacity. However, the Census of Production also implies that total capacity was at least 69,000 t/week, so both sources are questionable. The Davis List is as follows:

Companytonssites
1Aberthaw Portland Cement Co., Swansea60 wks
2Artillery and Albion Cement Co., Ltd., Greenhithe1000 wks wks
3Ashby and Son, Ltd., East Greenwich400 wks
4Aspdin and Son, Ltd., Wakefield0 wks
5Associated Portland Cement Mfrs., (1900), Ltd., 72, Fenchurch Street, London, E.C.2400016 wks
6Atlas Cement Co., Neath, South Wales160 wks
7Barham Bros., Bridgwater50 wks
8Barnstone Blue Lias Lime Co., Barnstone, Nottingham200 wks
9Barron, F. C. and Co., Ltd., Upchurch, Sittingbourne600 wks
10Bell and Sons, Saffron Walden120 wks
11Board, John and Co., Bridgwater450 wks wks
12Bottisham Lode Mill Cement Co., Bottisham Lode, Cambs0 wks
13Boulton and Co., Much Wenlock80 wks
14Brading Cement Co., Brading, Isle of Wight0 wks
15Bridgwater Portland Cement Co., Bridgwater120 wks
16Brown, O. A., Ltd., Mitcheldean, Dean Forest, Glos.350 wks
17Burley, C., Ltd., Sittingbourne80 wks
18Caledonian Cement Co., Nr Edinburgh400 wks
19Cam Blue Lias Lime and Cement Co., Ltd., Shepreth120 wks
20Casebourne and Co., Ltd., West Hartlepool1200 wks wks
21Chance and Hunt, Ltd., Oldbury250 wks
22Clitheroe Portland Cement Co., Clitheroe20 wks
23Colchester, Edward C., Hauxton Works, Gt. Shelford, Cambs0 wks
24Coles, Shadbolt and Co., Harefield, Rickmansworth400 wks
25Crosfields, Ltd., Warrington300 wks
26Dartford Cement Co., Ltd., Dartford400 wks
27Denbighshire Portland Cement Co., Afonwen250 wks
28Dorset Lime and Cement Co., Ltd., Wareham90 wks
29Earle, G. and T., Ltd., Hull2000 wks
30East Anglian Cement Co., Ltd., Shepreth250 wks
31Ellis, John and Sons, Ltd., 1, St. Martins, Leicester120 wks
32Farrance and Boyton, Pylle, Somerset50 wks
33Forder, B. J. and Son, Ltd., 104, High Holborn, London, W.C.800 wks
34Formby's Cement Works Co., Ltd., Rochester500 wks
35Grimshaw, W. and Sons, North Hylton150 wks
36Greaves, Bull and Lakin, Harbury, Leamington600 wks
37Hall and Co. (Croydon) Ltd., Croydon, S.E.500 wks
38Hylton Cement Co., Ltd., South Hylton, Sunderland150 wks
39Isis Portland Cement Co., Clitheroe200 wks
40Johnson, I. C. and Co., Ltd., London2600 wks
41Johnson, I. C. and Co., Ltd., Gateshead wks
42Kaye and Co., Ltd., Rugby600 wks
43Lee, Wm. Son and Co., Ltd., Halling, Rochester1750 wks
44Lewes Portland Cement Co., Lewes, Sussex200 wks
45Lyme Regis Portland Cement Co., Dorset120 wks
46Martin, Earle and Co., Ltd., Strood, Rochester4000 wks
47Mason, George and Co., Ipswich200 wks
48Meldreth Cement Co., Ltd., Meldreth, Cambs50 wks
49Nelson, Charles and Co., Ltd., Stockton, Rugby700 wks
50Norman Portland Cement Co., Ltd., Cambridge1200 wks
51Oxford Portland Cement Co., Ltd., Oxford350 wks
52Pattrick and Co., Dovercourt0 wks
53Peters Bros., Wouldham, Rochester1850 wks
54Potter, Addison and Son, Willington Quay, Newcastle-on-Tyne450 wks
55Premier Portland Cement Co., Ltd., Irthlingborough450 wks
56Queenborough Cement Co., Ltd., Queenborough600 wks
57Rhee Valley Portland Cement Co., Shepreth120 wks
58Richardson, A. and W. T., Teynham, Sittingbourne0 wks
59Robson's Cement Co., Ltd., Stoneferry, Hull800 wks
60Romsey Town Cement and Lime Co., Ltd., Cambridge60 wks
61Roshers Crown Quay Co., Gillingham0 wks
62Rugby Portland Cement Co., Ltd., Rugby700 wks wks
63Saxon Portland Cement Co., Ltd., Cambridge2000 wks
64Scott, Walter, Ltd., Newcastle-on-Tyne200 wks
65Sharps Green (Kent) Cement Works, Gillingham200 wks
66Skelsey's Adamant Cement Co., Hull650 wks
67Smeed, Dean and Co., Ltd., Sittingbourne600 wks
68South Wales Portland Cement Co., Ltd., Lower Penarth900 wks
69Stephenson, R. and Son, Ltd., Burwell, Cambs250 wks
70Sussex Portland Cement Co., Ltd., Newhaven (and Shoreham)1800 wks wks
71Swan, J. Cameron and Partners, Ltd., Jarrow-on-Tyne300 wks
72Tolhurst and Sons, Northfleet, Gravesend600 wks
73Trechmann, Otto, Ltd., West Hartlepool900 wks
74Trechmann, Weekes and Co., Ltd., Halling, Rochester800 wks
75Tunnel Portland Cement Works Co., Ltd., Grays400 wks
76Union Cement Co., Newcastle-on-Tyne400 wks
77Wear Portland Cement Co., Sunderland100 wks
78West Kent Portland Cement Co., Ltd., Burham, Rochester1250 wks
79Wouldham Cement Co., Ltd., West Thurrock, Grays2500 wks

It will be noted that 79 companies are listed, although a number of these are allotted a zero capacity, and some (not all) of these had in fact ceased to exist. Some had more than one plant, and of the 35 plants included in APCM at its launch, 16 remained in commission, so the list implies a total of 99 plants (not all operational). The total of the tonnages (67,070) divides into three cohorts: APCM (24,000 - 35.8%), other capacity in London, Thamesside and the Medway (20,030 - 29.9%) and other capacity in the rest of the UK (23,040 - 34.3%).

Lesley Cook used these numbers to explain the position of APCM towards the end of its first decade. She says that APCM did not grow between 1900 and 1907. The calculation took the 1899 "certified" production of 1,404,569 tons , subtracted 190,000 tons (in fact, a capacity) for the three drop-out firms, leaving around 1,214,600 tons. This she compares with Davis's 1907 capacity of 24,000 tons per week. The stasis, she thought, was due to the fact that plant closures (19 out of 35) had cancelled the effects of expansions at the larger plants (Note 5). The total national production in 1899 she gets from the prospectus: Thames/Medway production was 1,700,000 tons and this was " upward of 80 per cent. of the entire output of Portland Cement in the United Kingdom", so the national total must have been 2,125,000 tons. She then concludes that APCM began with "over half" (in fact 57%) of the total, while in 1907 (using Davis's numbers) it had "only just over one-third" (in fact 36%). In the London area, she says (page 40), "outside companies had by 1907 a capacity of about 20,000 tons a week, which means that the APCM had only a little over half the capacity in the area in which they had hoped for a monopoly". The capacity of provincial competitors in 1907 (34%), she compares with "only about a fifth" in 1899.

She claimed that "not a great deal is known" about the expansion of competitor firms. A number of snap-shot accounts of the expansion of such firms is not balanced by any account of the parallel developments in APCM. The industry could be divided into five sectors:

  • A: the actual APCM that emerged at the end of 1900, with a 1907 capacity of 24,000 tons per week
  • B: the three "drop-out" firms, capacity 4,650
  • C: the four firms with "working arrangements", capacity 8,850
  • D: the 22 firms (excluding the last two categories) that subsequently joined BPCM, capacity 17,060
  • E: the remaining 48 firms that remained independent, capacity 12,510.

The original purpose of the formation of APCM had been to create a monopoly that could control supply, set unchallenged high prices and thus generate high profits. It failed in this basic objective. At the same time, production technology advanced faster in the first decade of the 20th century than in any previous or subsequent decade. Kilns installed in 1900-1904 were already obsolete five years later. Firms had to continually invest in new capacity in order to keep up, but were reluctant to discard the old equipment that generated the cash for reinvestment. The result, in a sluggish pre-war market, was over-capacity and falling prices, so that few firms generated profits in excess of those needed for their investment programmes. APCM in particular made steady profits, but paid no dividends on ordinary shares. The result was a steady diminution of share prices, to as low as 6% of face value (Note 6).

In 1910, there still existed a belief that a monopoly could be achieved, and a takeover of the company's shares was orchestrated by the "69 Old Broad Street Group" controlled by John Wynford Philipps, J. S. Austen and M. B. Snell. This group's purchase of the company was based solely on their assessment of the under-valued share price. O'Hagan was of the entirely correct opinion that their interest was solely in "buying cheap and selling dear" without any regard to the details of the business, but nevertheless, money was made available for a second round of amalgamation.

The purchase of what became BPCM took place during 1910-1912. They must - surely - have realised that anything short of a complete industry buy-out would once again result in failure, but it was recognised almost from the outset that this would not be achieved. Once again, the significance of those firms left out was grossly underestimated. Again, Cook assesses the size of the new groupings in terms of Davis's 1907 data: APCM with 24,600 tons per week capacity (APCM had taken over Tolhurst), BPCM with 30,560, and the remaining 47 firms with 11,910. Thus, APCM and BPCM together held 82.2% of 1907 capacity. The obvious problem with this is that the 1907 data no longer represented the situation in 1911, although the amalgamators' intelligence may not have been much better.

It is interesting in retrospect to look at the actual data on capacity and output during this period. The cementkilns database contains data on clinker production and capacity. These differ slightly from cement data depending on the proportion of other components added to the cement, the only legitimate one being at this time gypsum (Note 7). Gypsum was only added at plants with rotary kilns, and at these, addition rates were less than 2% originally, rising to 2.5% by 1925, so the effect is small. The database data are in tonnes, and can be aggregated into the five sectors as above:

  • A: APCM
  • B: "Drop-out" firms
  • C: "working arrangements"
  • D: other BPCM
  • E: independents

The annual data over a 30-year period are given in the appendix. The capacity and output varied as follows:

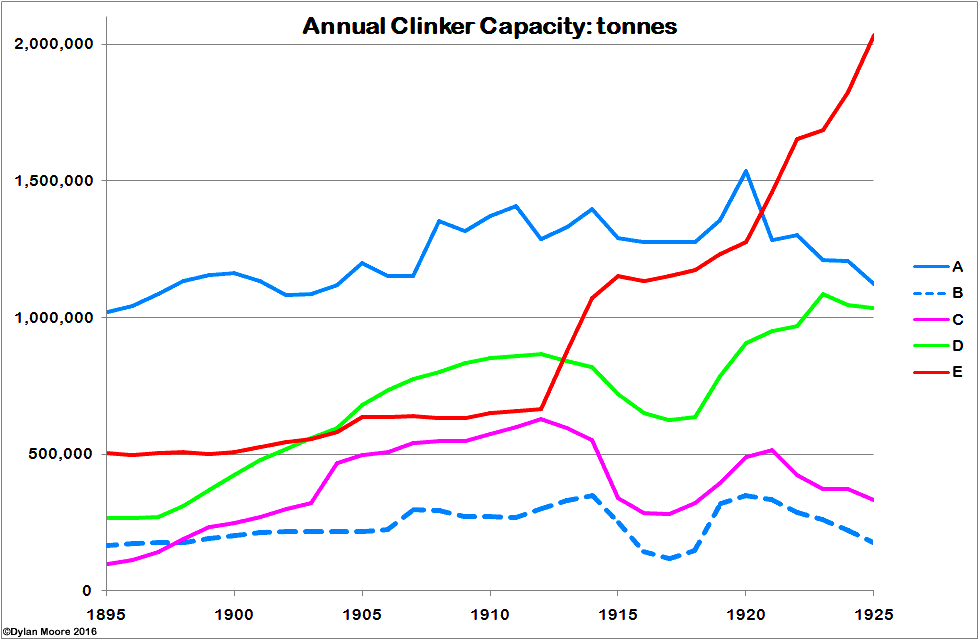

In capacity, APCM (A) continued to develop through the first decade, its relative size diminishing mainly because of the faster development of the firms (B, C and D) that subsequently made up BPCM. After the formation of BPCM in 1910-12, there was sluggish growth in the combine, while the independents (E) began at that time a very rapid growth which diluted the combine's share to around 60% - essentially its share for the next 70 years.

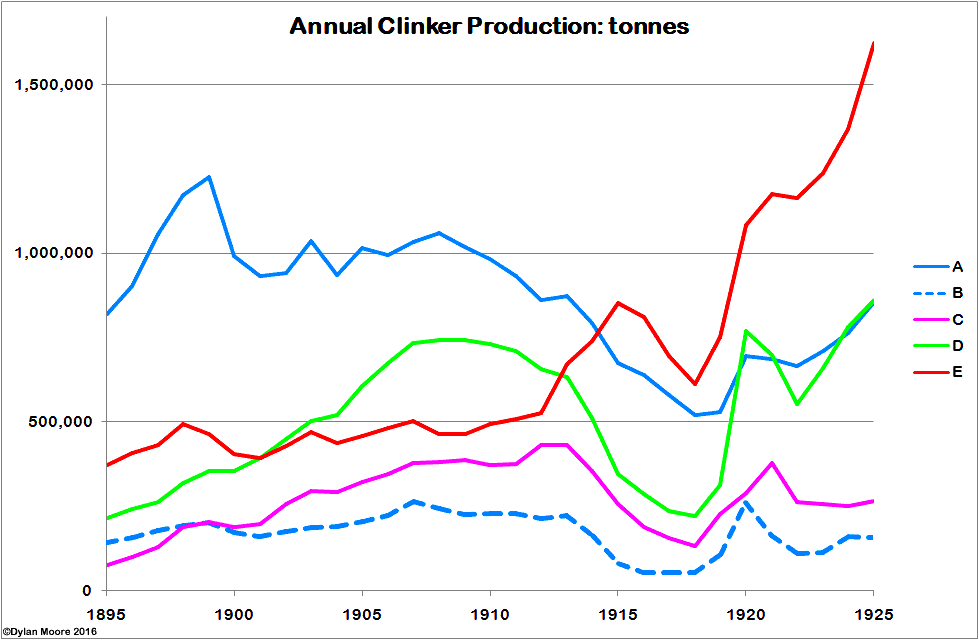

Actual production was characterised for APCM by a rapid growth in the period leading up to its formation, probably partly an artifact of the contract terms for the participants, followed by a period of tactical retrenchment. After 1912, the independents' expanded modern capacity achieved higher utilisation than the other sectors.

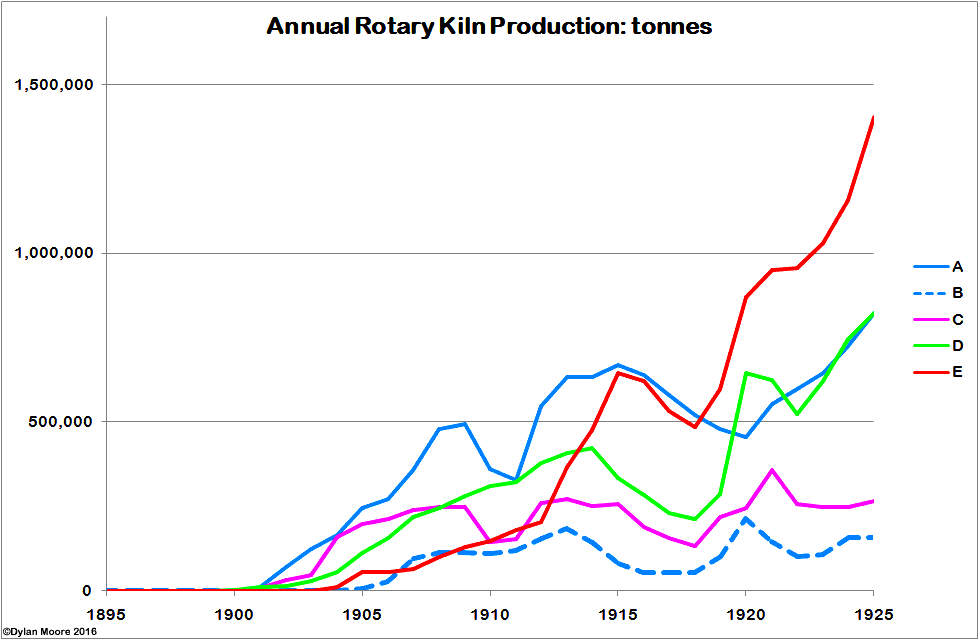

Installation of rotary kilns was the main disruptive change during the period. Rotary output was as follows:

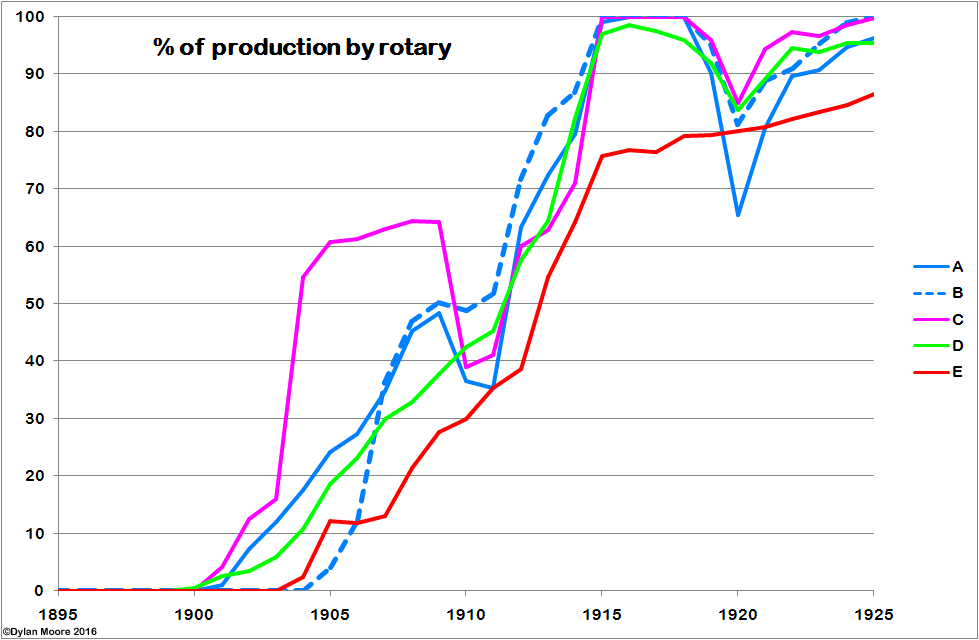

The immediate impression is that uptake of rotary production was fairly uniform across the sectors, except that the independents continually lagged behind by two or three years. The "early adopters" incurred high costs associated with modifying or scrapping early inefficient designs, and any gains in production efficiency from the new technology were probably insufficient to offset these. While the early adopters ultimately gained a large step-change in efficiency, by 1912, the new efficient plant designs were available "off-the-peg" to the independents from suppliers who had a good understanding of plant operation, so they avoided the costly learning process. Outstanding examples of this were Aberthaw and West Thurrock.

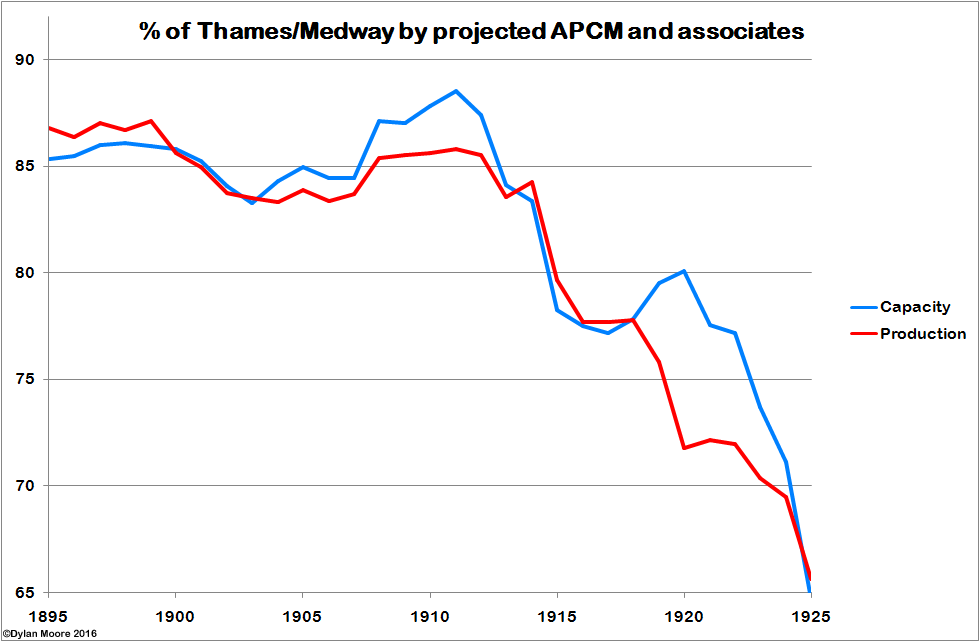

It is interesting to re-examine the original assumptions discussed above in terms of the database information. Firstly, the claim that "upward of 80 per cent. of the entire output of Portland Cement in the United Kingdom is produced on the Thames and Medway". This underlay the proposition that control of the Thames/Medway industry was sufficient to control the whole national industry.

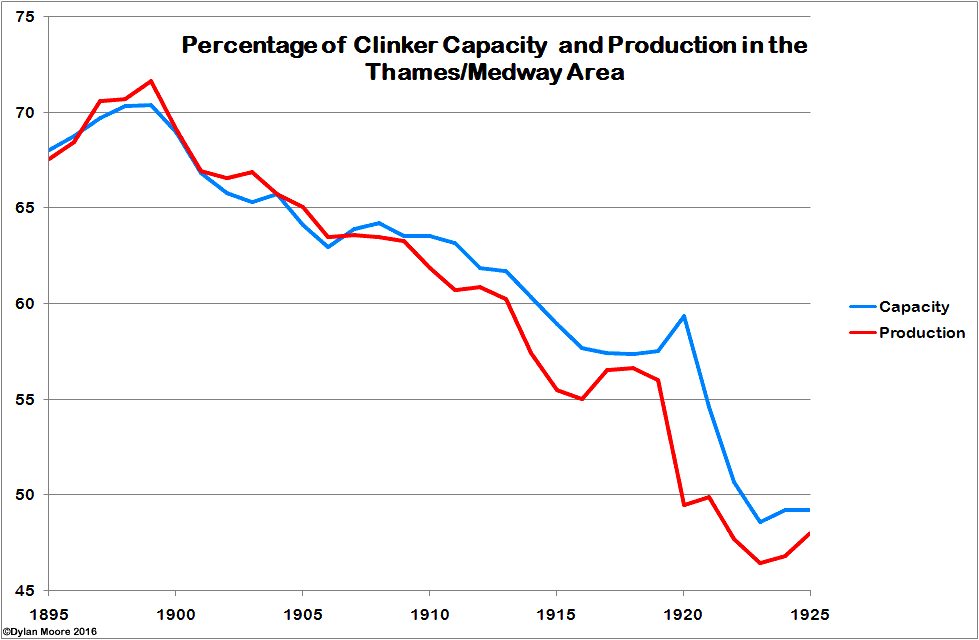

Not only was Thames/Medway capacity scarcely more than 70% of national capacity in 1899, but this was only a temporary peak associated with the amalgamation. In fact, during the previous three decades, the proportion varied little from 67%, and it only ever reached 80% briefly in the 1850s. It should be remembered that Portland cement originated in the North, and with William Aspdin's move to Gateshead, a large industry grew in the Tyne/Tees area, consistently averaging 10% of national capacity throughout the second half of the nineteenth century. The southern chauvinism that gave rise to a belief in the overwhelming importance of the Thames/Medway area was the first nail in the coffin of the APCM project. Promoters who rarely stirred from their City offices never challenged it. This silly attitude continued among Thamessiders throughout the twentieth century.

A second claim: "The undertakings which the Association acquires, and others with whom they will have working arrangements, are estimated to produce about 89 per cent of the total capacity of production of Cement on the Thames and Medway". This would appear to be sufficient to dominate the local market.

89% is an 8:1 dominance. 86% is only 6:1. The real data show that, even if all firms had joined as planned, the proportion achieved was significantly less than that promised, even at the time of the prospectus. All these missed targets conspired to ensure that APCM could not possibly have dealt the knock-out blow to the industry that was intended. Those firms that decided to stand on the sidelines probably understood this.

- o - O - o -

NOTES

Note 1. O'Hagan saw the gathering of reliable data as an important part of his effort to bring about the amalgamation, since the companies on their own had failed to gain sufficient access to each other's data. How well he succeeded in this is debatable.

Note 2. Although many more were negotiated, the final firms with "working arrangements" were Lee's, Martin Earles, Queenborough and Wouldham.

Note 3. These were I. C. Johnson, Trechmann Weekes and West Kent.

Note 4. 1907 Census of Production, HMSO, pp 753-756 & 775-776. The census is not detailed, and notwithstanding its legal mandate, looks as though it might not have been comprehensive: cement industry companies were undoubtedly among those least likely to submit a truthful return. It gives cement production in 1907 as 2,886,000 tons, exports at 764,000 tons and imports 113,000 tons. The production was subdivided according to capacity, but capacity data were incomplete. Among those returns that stated the plant capacity, there were 1464 static kilns with a total capacity of 38,000 t/week, and 72 rotary kilns with a total capacity of 22,000 t/week. These two categories together produced 2,424,000 tons. Among those returns that gave no capacity data, there were 26 static kilns which made 72,000 tons, and an unspecified number of kilns of unspecified type which made 381,000 tons. The total of these production figures is 2,877,000 tons, which is different from the headline figure. Thus it is hard to make any precise statement of the makeup of the industry in 1907. Far from holding delinquent firms' feet to the fire, I suppose the census authorities thought themselves lucky that they got any data at all.

Note 5. The tendency to close smaller plants rather than develop them might be seen as the attempt of a monopoly to raise prices by restricting supply, but APCM also had the problem that, aside from the major upgrades at Swanscombe and Bevans, few of their plants had the raw material reserves needed for major upgrades. To the likes of O'Hagan, buying up "going concerns", the latter was not a major issue. Plant descriptions of the time often call raw material reserves "inexhaustible", but this assessment does not allow for an upgrade from, say, 200 t/week to 10,000 t/week, which would have been inconceivable to the average small operator in 1900.

Note 6. The price of £10 ordinary shares bottomed out at 12/6 in 1909.

Note 7. Chalk, limestone, sandstone and slag were routinely added in quantity, although this was rarely admitted, and for audit purposes was counted as clinker. The formula was "clinker used" = "cement made" minus "gypsum used". An amusing instance of this rule being imparted by a plant supplier to a beginner manufacturer is to be found in Leicester Archives.

Note 8.

Note 9.

Note 10.

Text and notes for this article are in preparation.
Original content © Dylan Moore 2016: commenced 04/09/2016: last edit 08/06/2017.

Return to Writings

Appendix: Sector Annual Data

NOTE: the database is still a work in progress. Although the broad picture presented is reasonably accurate, individual items of data are still liable to minor changes from time to time.

Clinker Capacity tonnes
yearSectorTotal
ABCDE
18951020945166750964002648005026732051568
189610410001715001111502675004985452089695
189710846101762501418202695755058602178115
189811339301785001896603093205094902320900
189911541051896252327003679005019752446305
190011646252025002473004219955061252542545
190111348572117502708074791805271752623769
190210835432172502978305202155454252664263
190310859482172503220305573005544252736953
190411208282172504676205948805815302982108
190511977822167604974306791256373503228447
190611521622255205061807348106350353253707
190711529322975605391427754806410253406139
190813525492953805490008001906305653627684
190913169652713805483208331306334903603285
191013706832713805737208504006492103715393
191114077852671905994708577356583103790490
191212868103004306286008662306641353746205
191313328943308305956208391408789203977404
1914139689034923055012081858510697364184561
1915129275524814033912071830011512403749555
1916127700514196028562065153011331003489215
1917127700511846027962062636011527003454145
1918127700514746031962063493011751603554175
1919135615531916039452078708012310104087925
1920153570534823048882090524012752004553195
1921128342933255051582095024014601754542214
1922130197028681042472097004016538004637340
19231211195261400373220108429016879254618030
19241207730220400373220104432518246704670345
19251123847178500333220103655020338804705997

Clinker Output tonnes
yearSectorTotal
ABCDE
1895820500143800769002161503732701630620
1896903000158300987002418704072601809130
189710572001786001290002628704329012060571
189811713001935001895003178404937172365857
189912256002015002046003537604648002450260
19009907001713001881003545004043782108978
19019316001611001964003932003922062074506
19029416001745002578004497204294282253048
190310349001887002956005026104699872491797
19049348001901002928005194504384862375636
190510162002057003237006059804578452609425
19069943002227003464006734804816502718530
190710333002646003792007338505019712912921
190810602002438003827007440004649832895683
190910191002258003872007443004658542842254
19109839002281003722007308004929562807956
19119325002296003751007097005102462757146
19128606002156004318006573505262362691586
19138738002241004308286338116723002834839
19147946001632003551005129707389992564869
1915674800796002579003452008533922210892
1916639900546001896002875008097261981326
1917579400549001550002354006969681721668
1918520300550001334002219006112051541805
19195298001079002269003129007529201930420
192069570026220029010077080010846443103444
192168650016450037890069950011745183103918
192266630011110026300055330011631292756829
192371050011290025640066140012363642977564
192476464015970025150078135013666953323885
192585500015890026630086190016240283766128
