Cement Kilns

Union

Location:

  • Grid reference: NZ31496620
  • x=431490
  • y=566200
  • 54°59'22"N; 1°30'28"W
  • Civil Parish: Wallsend, Northumberland

Clinker manufacture operational: ?1871-?1908

Approximate total clinker production: 420,000 tonnes

Raw materials:

Ownership: Union Cement Co. Ltd

The plant was built on a previously-undeveloped land lot and reclaimed foreshore to the east of the Wallsend colliery wharfs. The plant began with four wet process bottle kilns, expanded to six (160 t/week) by 1888, at which time a block of eight chamber kilns (240 t/week) was added. This makes up Davis’ 1907 capacity of 400 t/week . It appears in directories up to 1910, but is absent in 1916. It probably stopped in the 1908 price war, and a re-start was rendered impossible by WWI. Unlike the other Tyne plants, it had substantial rail facilities, but undoubtedly used water predominantly. The site was cleared after closure and was absorbed into the adjacent shipbuilding sites.

No rotary kilns were installed.


Sources: Only attested in Davis’ 1907 list: mentioned (but not explicitly) by Francis, p 227: other information is from OS maps and from Ward’s Directory of Newcastle-on-Tyne, 1890 and 1898.


© Dylan Moore 2011: last edit 11/02/2016.

Return to plant list


Old Maps

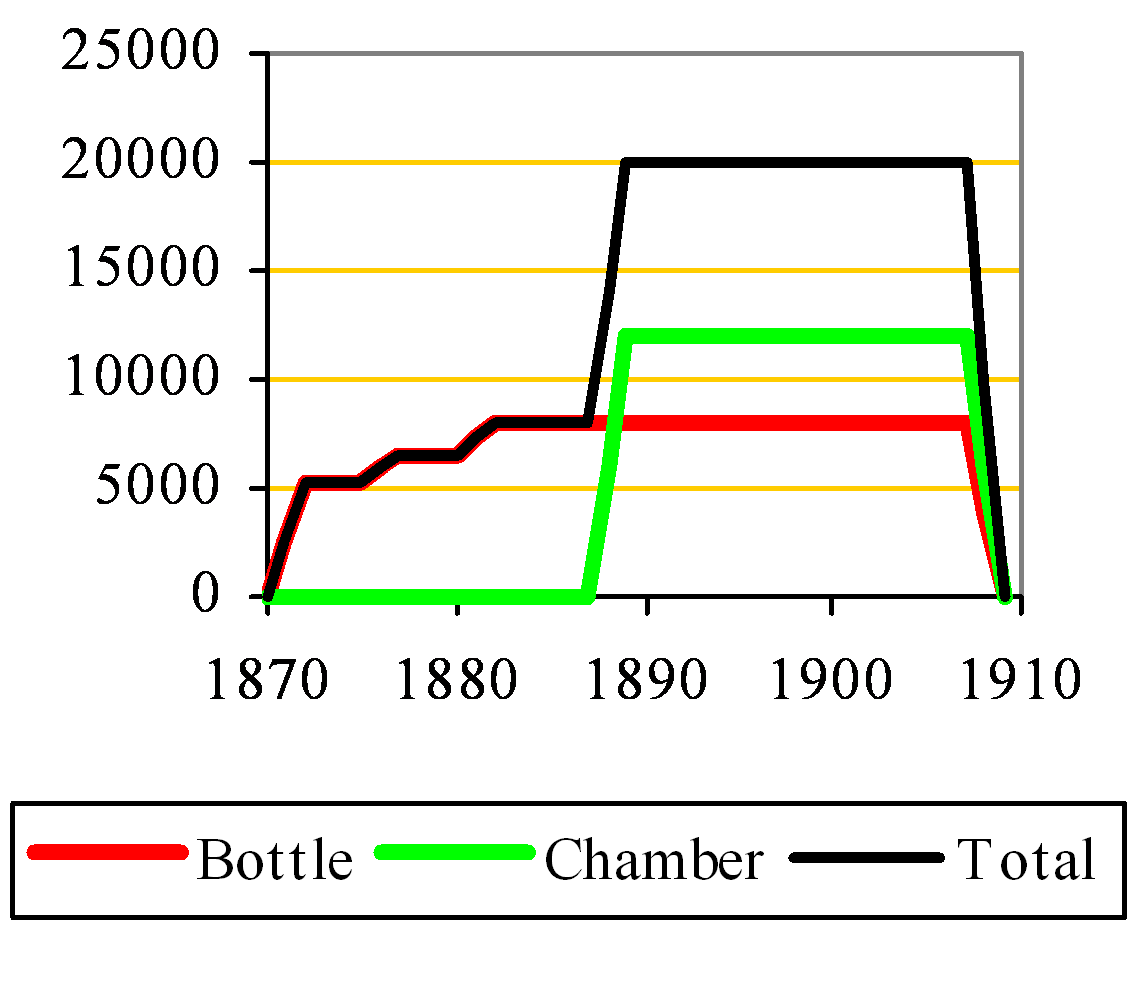

Approximate capacity: tonnes per year
Union Capacity
