Cement Kilns

Platin

Location:

  • Grid reference:
    • ITM 706568,771787
    • old style O0666671790
  • 53°41'6"N; 6°23'7"W
  • Townland: Platin, County Meath

Clinker manufacture operational: 1972 to date

Approximate clinker production to 2015: 46 million tonnes (5th)

Raw materials:

Ownership: CRH (Irish Cement)

Built to replace the Drogheda plant, which was increasingly inconvenient to run because of the spread of Drogheda’s suburbs, restricting the extension of the quarry that might otherwise have allowed the conversion of the old plant to dry process. At Platin, raw materials were more or less unlimited, and the location is conveniently close to Dublin, while also allowing penetration of the Northern Ireland market. It had Ireland’s second dry-process kiln. The original plan of the plant allowed for four oil-fired long dry kilns: the 1973 energy crisis caused an immediate re-appraisal of this strategy, and subsequent developments confirmed the plant as the most efficient in Britain and Ireland. Kiln A2 was the first precalciner in Britain and Ireland: having planetary coolers it was necessarily of the “air-through” type. The planetary coolers were replaced with a grate in 1997, allowing conversion to “air-separate” operation. It is perhaps a comment on the state of the British industry that A2 has remained Britain and Ireland’s largest kiln ever since it was installed. With the installation of kiln A3 in January 2009 Platin became the largest plant in Britain and Ireland.

Note: technical information on currently operational plants is ✄withheld in the public version of the site at present.

Rawmills

  • Kiln 1 had a 1940 Unidan ball mill, initially heated by an oil-fired furnace, but subsequently heated with kiln exhaust gas.
  • Kiln 2 ✄
  • Kiln 3 has a 3800 kW FLS ATOX 47.5 roller mill heated by kiln exhaust gas(1).

Three rotary kilns were installed:

Kiln A1

Supplier: FLS
Operated: 1972-9/10/2008
Process: Long dry with 1-stage suspension preheater
Location: hot end (cooler ports) 706631,771825: cold end 706508,771791: unenclosed.
Dimensions: metric 128.00 × 4.350BC / 5.000D
Rotation (viewed from firing end): anti-clockwise
Slope: ?
Speed: ?
Drive: ?
Kiln profile: -20000×4350: 84150×4350: 87900×5000: 126000×5000: 128000×3000: tyres at -19000, 1650, 31800, 73800, 112800: turning gear at 68400.
Cooler: Unax planetary 11×16.80×1.650
Fuel: Initially Oil: changed to Coal in 1977
Coal Mill: indirect: FLS Tirax ball mill
Typical Output: 1250 t/d
Typical Heat Consumption: 4.1 MJ/kg


Kiln A2

Supplier: FLS
Operated: 1977 to date
Process: air-through precalciner: details ✄
Location: hot end 706613,771847: cold end 706533,771823: unenclosed
Dimensions: ✄
Rotation (viewed from firing end): anti-clockwise
Slope: ?
Speed: ?
Drive: dual
Kiln profile: ✄
Cooler: Unax planetary: details ✄: later grate: details ✄
Fuel: ✄
Coal mill: ✄
Exhaust: ✄
Typical Output: ✄
Typical Heat Consumption: ✄


Kiln A3

Supplier: FLS
Operated: 1/2009 to date
Process: air-separate precalciner: details ✄
Location: hot end 706589,771726: cold end 706531,771709: unenclosed
Dimensions: metric 60.00 × 5.000(1)
Rotation (viewed from firing end): clockwise
Slope: 3.5% (2.006°)
Speed: ?
Drive: ?
Kiln profile: ✄
Cooler: FLS MMC 11 × 97 crossbar grate(1)
Fuel: ✄
Fuel Mill: FLS ATOX 25 roller mill(1)
Exhaust: ✄
Typical Output: ✄
Typical Heat Consumption: ✄



References:
(1) FLS press release


Sources: "Platin Cement Works, Republic of Ireland", Cement Technology, 4, 1973 pp 8-12: Irish Cement 1938-1988, CRH plc, 1988: Ray Lund, “Conversion of a 3000 tpd Planetary Cooler Kiln to Grate Cooler in less than 50 days” in 1999 IEEE-IAS/PCA Cement Industry Technical Conference Record, 1999: "Green cement plant for the Emerald Isle", FLS press release.


© Dylan Moore 2011: commenced 18/03/2011: last edit 14/12/2016.

Return to plant list

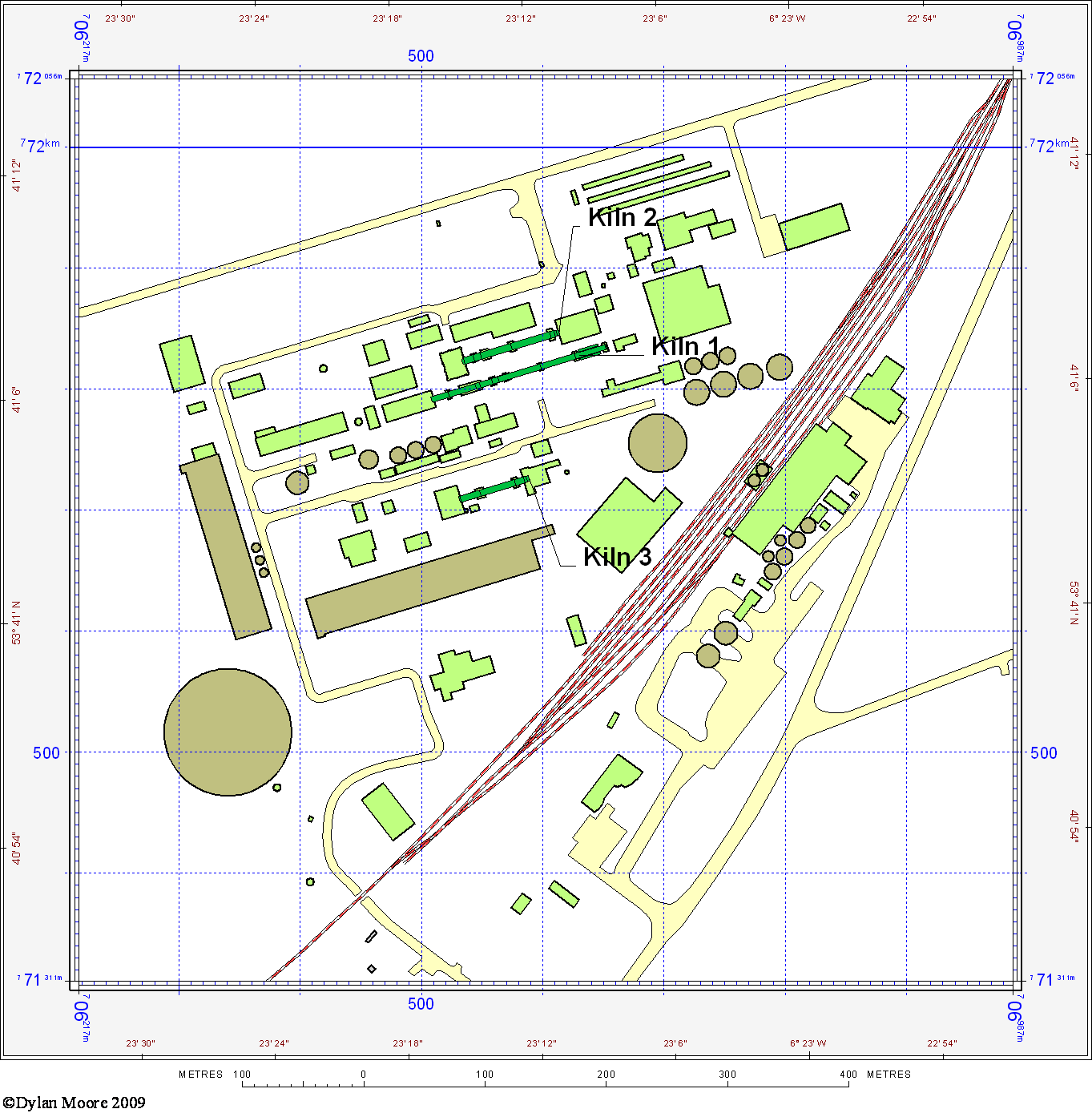

Platin Detail

Approximate capacity: tonnes per year: ✄


Platin Picture

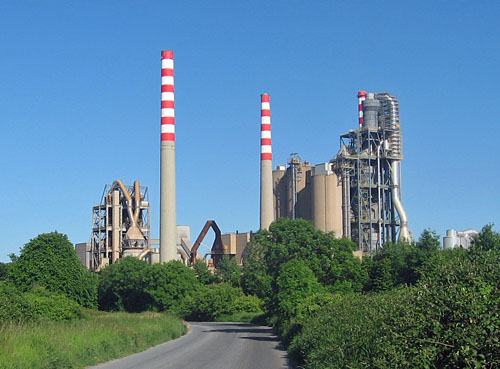

Picture: ©Kieran Campbell 2010, and licensed for reuse under this Creative Commons Licence. See this and related images on Geograph. This shows the plant in 2010, viewed from the west. The stacks are (L to R) kilns 2, 1 and 3. The cyclones of kiln 3 preheater are clearly visible.
